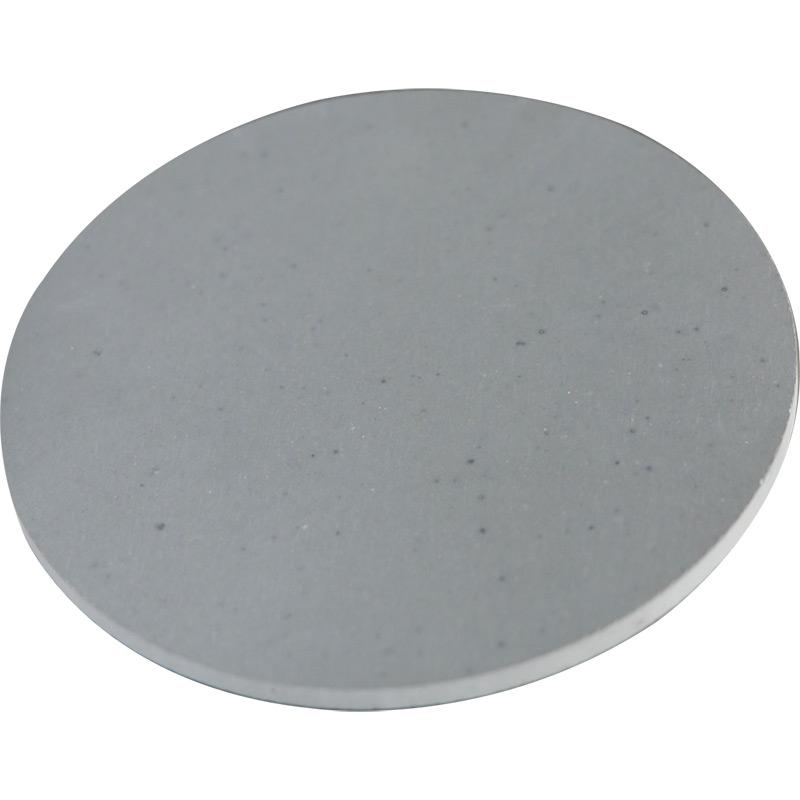

High-purity Tin Oxide (SnO₂) sputtering targets for RF magnetron deposition of fluorine-doped tin oxide (FTO) transparent electrodes, n-type gas sensor films, and optical coatings. SnO₂ is a wide-bandgap (3.6–3.8 eV) n-type semiconductor with high electrical conductivity when fluorine-doped, making FTO the standard transparent electrode in dye-sensitised solar cells (DSSC), perovskite solar cells, and electrochemical sensors. CY Scientific SnO₂ targets are sintered to > 95% density.
Specifications
| Parameter | Value / Details |
|---|
| Material | Tin Oxide (SnO₂) |
| Purity | 99.9% (3N) / 99.99% (4N) |
| Bandgap | 3.6–3.8 eV (direct, wide bandgap) |
| Crystal Structure | Rutile (tetragonal) |
| Relative Density | > 95% theoretical density |
| Doped Variants | F-doped SnO₂ (FTO) — 5–10 wt% F available |
| Standard Sizes | Ø 50.8 mm × 3 mm / Ø 76.2 mm × 3 mm (disc) — custom sizes available |
| Sputtering Method | RF magnetron sputtering |
| Process Gas | Ar / Ar + O₂ / Ar + CF₄ (for FTO) |
| Film Applications | FTO electrode, DSSC, perovskite solar cell, gas sensor, UV detector |
| Packaging | Vacuum-sealed bag + foam-padded box — ICP-OES purity certificate included |
| Bonding | Cu or In backing plate bonding available on request |
| Storage | Cool, dry — hygroscopic tendencies |
| Lead Time | 3–7 days (stock) / 10–20 days (custom) |
| Customization | F%, Sb-doped ATO, size, purity on request |
Trade Information
| Trade Detail | Information |
|---|
| Minimum Order Quantity | 1 Piece |
| Supply Ability | 100 Pieces Per Month |
| Delivery Time | 1–3 Weeks |
| Main Domestic Market | China |
| Export Markets | Worldwide |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Packaging | Vacuum-sealed bag + foam-padded box |
| Certification | ISO 9001 — purity certificate (ICP-OES) provided |
| Storage | Cool, dry environment — reseal after use |
| Customization | Custom size, purity, shape, bonding, and alloy available |
